基于AT86RF230设计的2.4 GHz无线收发技术
[10-10 20:38:44] 来源:http://www.88dzw.com 单片机学习 阅读:8269次
文章摘要:- Fully Integrated PLL with on-chip Loop Filter- Fast PLL Settling Time- Battery Monitor- Fast Power-Up Time < 1 ms• Special IEEE 802.15.4-2003 Hardware Support:- FCS Computation- Clear Channel Assessment- Energy Detection / RSSI Computation- Automatic CSMA-CA- Automatic Frame Retransmissio
基于AT86RF230设计的2.4 GHz无线收发技术,标签:单片机开发,单片机原理,http://www.88dzw.com- Fully Integrated PLL with on-chip Loop Filter
- Fast PLL Settling Time
- Battery Monitor
- Fast Power-Up Time < 1 ms
• Special IEEE 802.15.4-2003 Hardware Support:
- FCS Computation
- Clear Channel Assessment
- Energy Detection / RSSI Computation
- Automatic CSMA-CA
- Automatic Frame Retransmission
- Automatic Frame Acknowledgement
- Automatic Address Filtering
• Industrial Temperature Range:
- -40℃ to 85℃
• I/O and Packages:
- 32-pin Low-Profile QFN
- RoHS/Fully Green
• Compliant to EN 300 328/440, FCC-CFR-47 Part 15, ARIB STD-66, RSS-210
• Compliant to IEEE 802.15.4-2003
www.88dzw.com

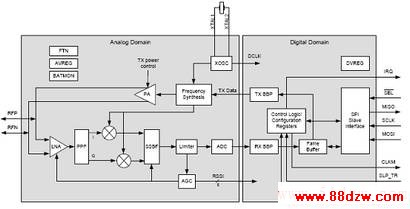

图1.AT86RF230方框图

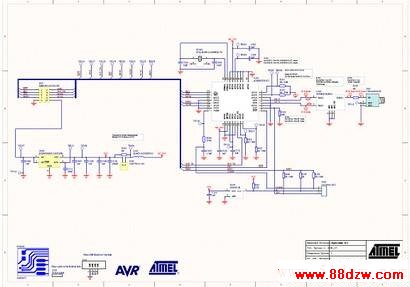

图2.AT86RF230应用电路图
RZ600评估板
The RZ600 evaluation kit enables development, debugging and demonstration of IEEE 802.15.4 compliant wireless applications such as ZigBee and 6LoWPAN. The kit is FCC certified and contains evaluation boards for AT86RF212 and the AT86RF23x families of RF transceivers covering the regional 700/800/900MHz and worldwide 2.4GHz ISM bands for use with STK600.
The kit also contains two USB adapters equipped with UC3A 32-bit AVR microcontrollers for standalone point-point or packet sniffer operation.

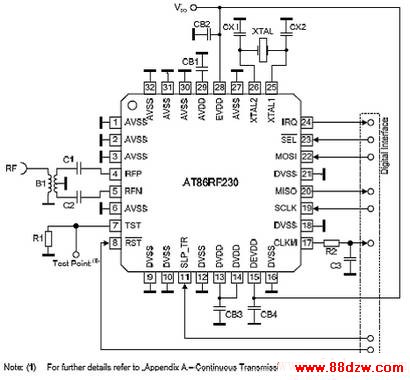

图3.RZ600评估板外形图

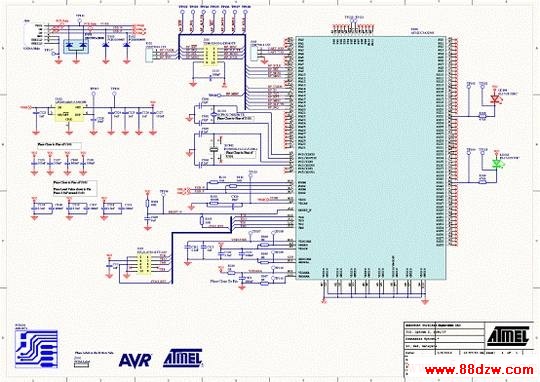

图4.RZ600无线电电路图
图5.RZ600 USB适配器电路图
