基于MAX97001设计的单片音频系统方案

文章摘要：WindowsM 2000-, Windows XPM-, and Windows VistaMcompatible software is provided to facilitate configuration.The software controls an on-board microcontroller over USB, which generates I2C commands.MAX97001评估板:Proven Audio PCB LayoutOn-Board USB Interface Circuit Generates I2CCompatible SignalsPCB Pa

基于MAX97001设计的单片音频系统方案,标签：单片机开发,单片机原理,http://www.88dzw.com

WindowsM 2000-, Windows XPM-, and Windows VistaMcompatible software is provided to facilitate configuration.

The software controls an on-board microcontroller over USB, which generates I2C commands.

MAX97001评估板:

Proven Audio PCB Layout

On-Board USB Interface Circuit Generates I2CCompatible Signals

PCB Pads for User-Supplied I2C-Compatible Signals

Surface-Mount Components

Windows 2000-, Windows XP-, and Windows Vista (32-Bit)-Compatible Software

Fully Assembled and Tested

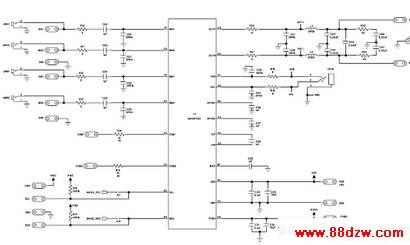

图3.MAX97001评估板电路图(1)

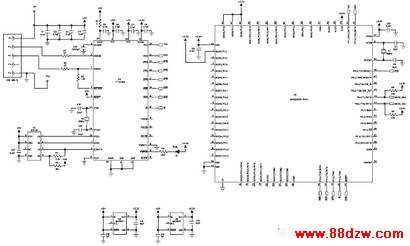

图4.MAX97001评估板电路图(2)

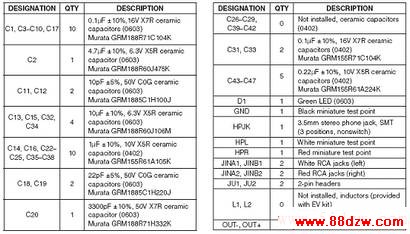

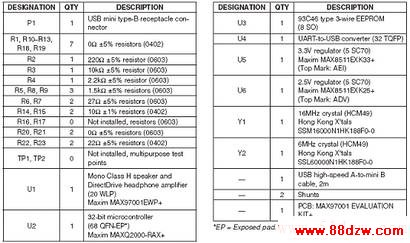

MAX97001评估板元件清单:
