Audio Notch Filter
[02-25 03:56:44] 来源:http://www.88dzw.com 运算放大电路电路图 阅读:8775次
文章摘要:At first glance this circuit looks fairly complex, but when broken down,can be divided into high pass and low pass filter sections followed by a summing amplifier with a gain of around 20 times. Supply rail voltage is +/- 9V DC. The controls may also be adjusted for use as a band stop (notch) filter

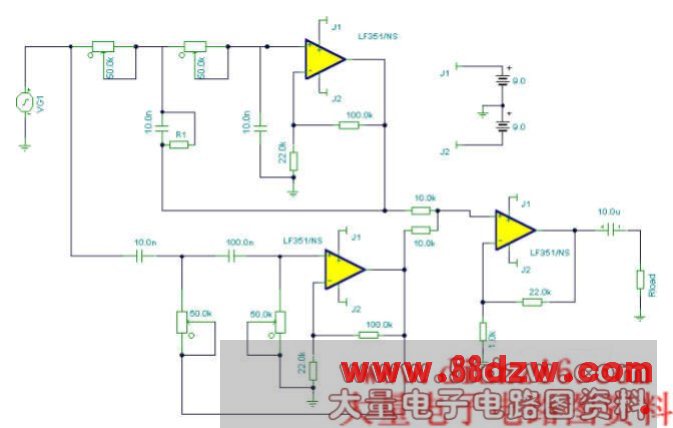

Audio Notch Filter,标签:电路图讲解,电路图练习,http://www.88dzw.comAt first glance this circuit looks fairly complex, but when broken down,can be divided into high pass and low pass filter sections followed by a summing amplifier with a gain of around 20 times. Supply rail voltage is +/- 9V DC. The controls may also be adjusted for use as a band stop (notch) filter or band pass filter.
