Efficiency Plots

Efficiency V_S load-current plots are given in Figures 2 and 3. The input voltage was V_OUT = 25V in Figure 2 and V_OUT = 45V in Figure 3.

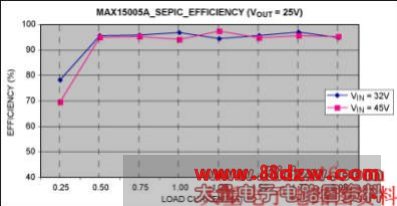

Figure 2. Load current vs. converter efficiency for V_OUT = 25V.

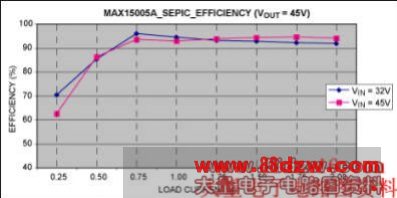

Figure 3. Load current vs. converter efficiency for V_OUT = 45V.

Experimental Results

Converter output voltage and load current are shown in following figures for different input excitations.

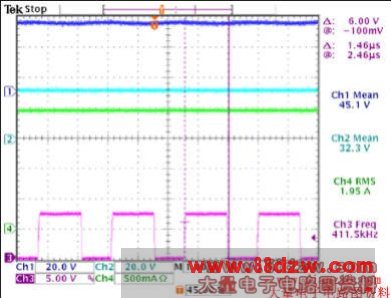

Test conditions: V_IN = 45V and V_OUT = 45V.

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET drain voltage; Ch4: output current.


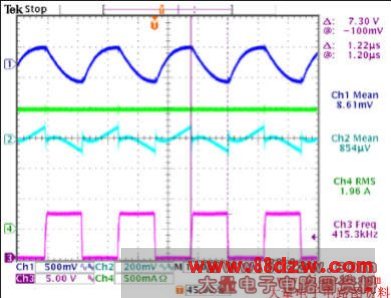

Test conditions: V_IN = 32V and V_OUT = 45V.

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.

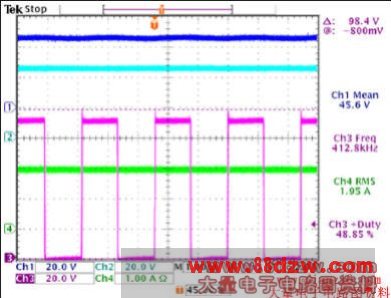

Test conditions: V_IN = 45V and V_OUT = 45V.

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.

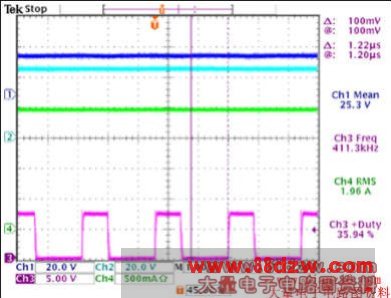

Test conditions: V_IN= 45V and V_OUT= 25V.

Ch1: output voltage; Ch2: input voltage; Ch3: MOSFET gate voltage; Ch4: output current.
