基于LT4180设计的精密负载调整电源方案
[10-10 20:39:48] 来源:http://www.88dzw.com 电源电路 阅读:8914次

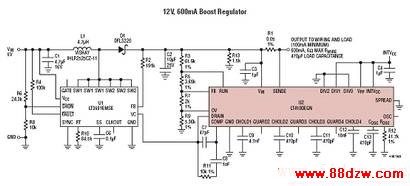

文章摘要:LT4180是全特性电源控制器,集成有5mA光隔离器,欠压/过压锁住,软起动和±1%内部基准电压. LT4180的虚拟遥测特性包括用户编程的抖动频率和扩展频谱抖动.输入电压从3.1V到50V,主要用在12V高强亮度灯,28V工业系统,大于40W的CAT5电缆系统,AC和DC适配器,井下采集和其它遥控仪表等.本文介绍了LT4180主要特性,方框图以及典型应用电路,包括12V/500mA线性稳压器电路图, 12V/600mA升压稳压器电路图和3.3V隔离反激稳压器电路图.The LT4180 solves the problem of providing tight load regulation
基于LT4180设计的精密负载调整电源方案,标签:电源电路,电路设计,http://www.88dzw.comLT4180是全特性电源控制器,集成有5mA光隔离器,欠压/过压锁住,软起动和±1%内部基准电压. LT4180的虚拟遥测特性包括用户编程的抖动频率和扩展频谱抖动.输入电压从3.1V到50V,主要用在12V高强亮度灯,28V工业系统,大于40W的CAT5电缆系统,AC和DC适配器,井下采集和其它遥控仪表等.本文介绍了LT4180主要特性,方框图以及典型应用电路,包括12V/500mA线性稳压器电路图, 12V/600mA升压稳压器电路图和3.3V隔离反激稳压器电路图.
The LT4180 solves the problem of providing tight load regulation over long, highly resistive cables without requiring an additional pair of remote sense wires. This Virtual Remote Sense™ device continuously interrogates the line impedance and corrects the power supply output voltage via its feedback loop to maintain a steady voltage at the load regardless of current changes.
The LT4180 is a full-featured controller with 5mA optoisolator sink capability, under/overvoltage lockout, soft-start and a ±1% internal voltage reference. The Virtual Remote Sense feature set includes user-programmable dither frequency and optional spread spectrum dither.
The LT4180 works with any topology and type of isolated or nonisolated power supply, including DC/DC converters and adjustable linear regulators.
The LT4180 is available in a 24-pin, SSOP package.
LT4180主要特性:
Tight Load Regulation with Highly Resistive Cables without Requiring Remote Sense Wiring
Compatible with Isolated and Nonisolated Power Supplies
±1% Internal Voltage Reference
5mA Sink Current Capability
Soft-Correct Reduces Turn-On Transients
Undervoltage and Overvoltage Protection
Pin-Programmable Dither Frequency
Optional Spread Spectrum Dither
Wide VIN Range: 3.1V to 50V
24-Pin SSOP Package
LT4180应用:
12V High Intensity Lamps
28V Industrial Systems
High Power (>40 Watts) CAT5 Cable Systems
Wiring Drop Cancellation for Notebook Computer Battery Charging
AC and DC Adaptors
Well-Logging and Other Remote Instrumentation
Surveillance Equipment
www.88dzw.com

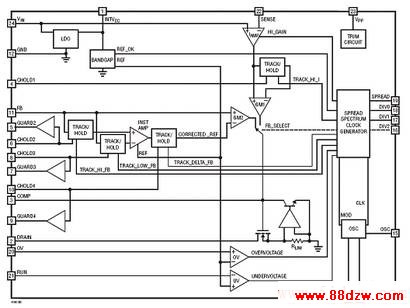

图1.LT4180方框图

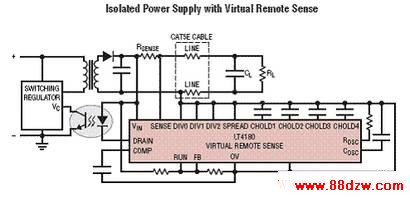

图2.LT4180隔离电源框图

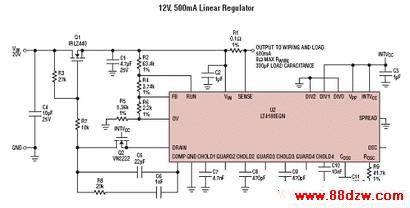

图3.LT4180 12V/500mA线性稳压器电路图
